Products

Picophotonics manufactures compact, high energy microchip laser systems for picosecond spectroscopy, sensing and nonlinear applications. Our proprietary semiconductor technology allows pulse durations from 50 ps and 100 picosecond upwards while offering high pulse repetition rates, microjoule pulse energies and excellent spectral properties with M2 < 1.3. We offer laser compact laser solutions at 532 nm, 1064 nm, 767 nm and 1535 nm.

Our products covers systems from turn-key devices with master oscillator power amplifier (MOPA) configuration to ultracompact microchip lasers for OEM integration.

P -platform

P -platform devices offer the most comprehensive coverage of picosecond pulses with dynamically tunable pulse repetition rate and pulse peak powers ranging up to 100 kW.
Systems include integrated electronics, shutter system and optional fiber coupling.

CP32 - 532 nm MOPA

Pulse duration: 50 – 300 ps
Pulse repetition rate: 10 – 200 kHz
Pulse energy: up to 5 µJ

CP64 - 1064 nm MOPA

Pulse duration: 50 – 300 ps
Pulse repetition rate: 10 – 200 kHz
Pulse energy: up to 10 µJ

S -platform

Pico- and nanosecond microchip seed lasers with integrated driver system, tunable pulse repetition rate, optical shutter and optional fiber coupling.

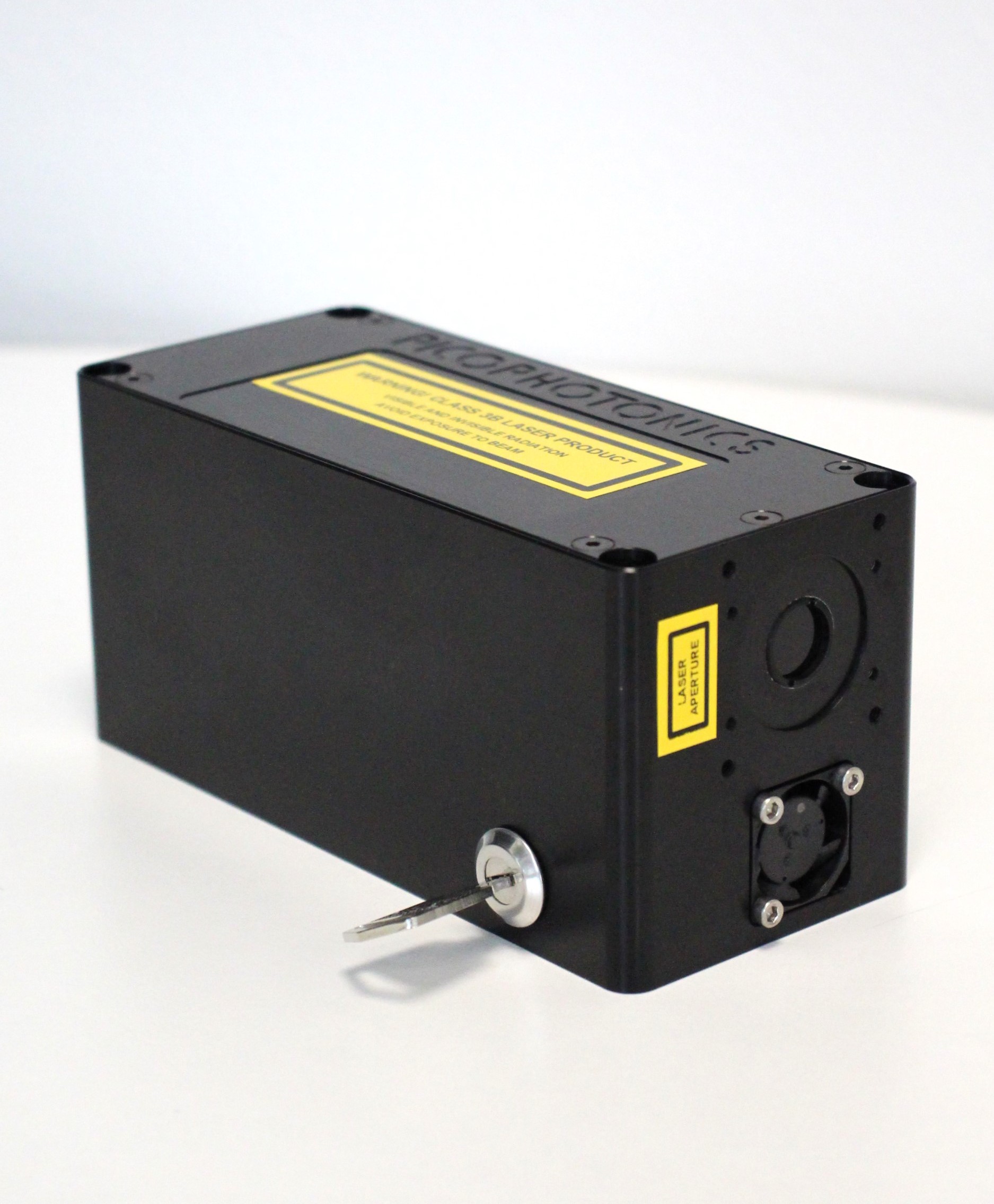

SP10 - 1064 nm

Pulse duration: 50 – 300 ps
Pulse repetition rate: 10 – 200 kHz
Pulse energy: up to 1 µJ

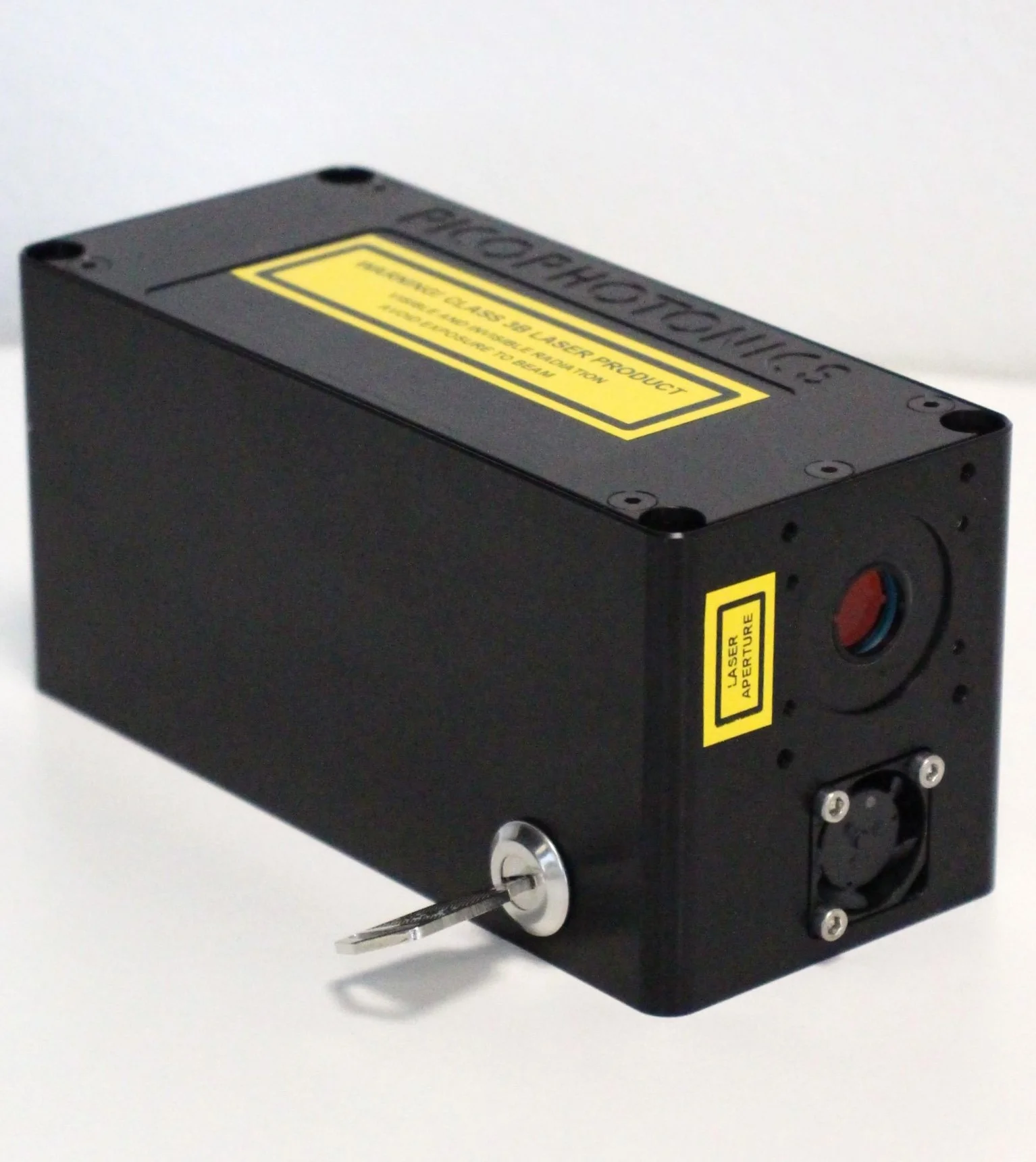

SP05 - 532 nm

Pulse duration: 50 – 300 ps
Pulse repetition rate: 10 – 200 kHz
Pulse energy: up to 1 µJ

SK15 - 1535 nm

Pulse duration: 1 – 5 ns
Pulse repetition rate: 1 – 50 kHz
Pulse energy: up to 15 µJ

Microchip laser source

Our most compact laser sources with microchip as a component. Evaluation kit electronics and customized parameters available. Contact us for more information.

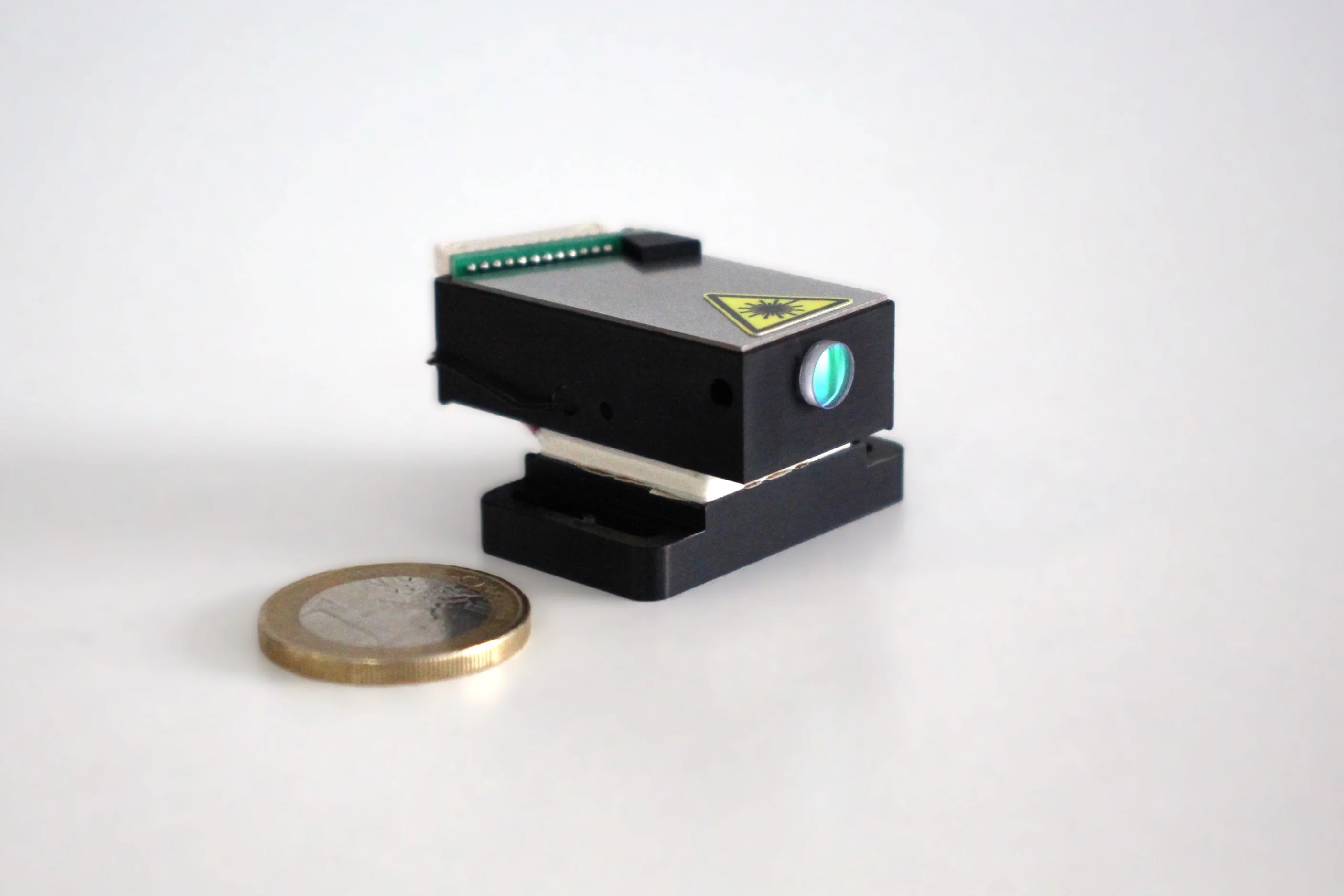

VG10 - 1064 nm
OEM laser

Pulse duration: 150 – 500 ps
Pulse repetition rate: 1 – 500 kHz
Pulse energy: up to 1 µJ

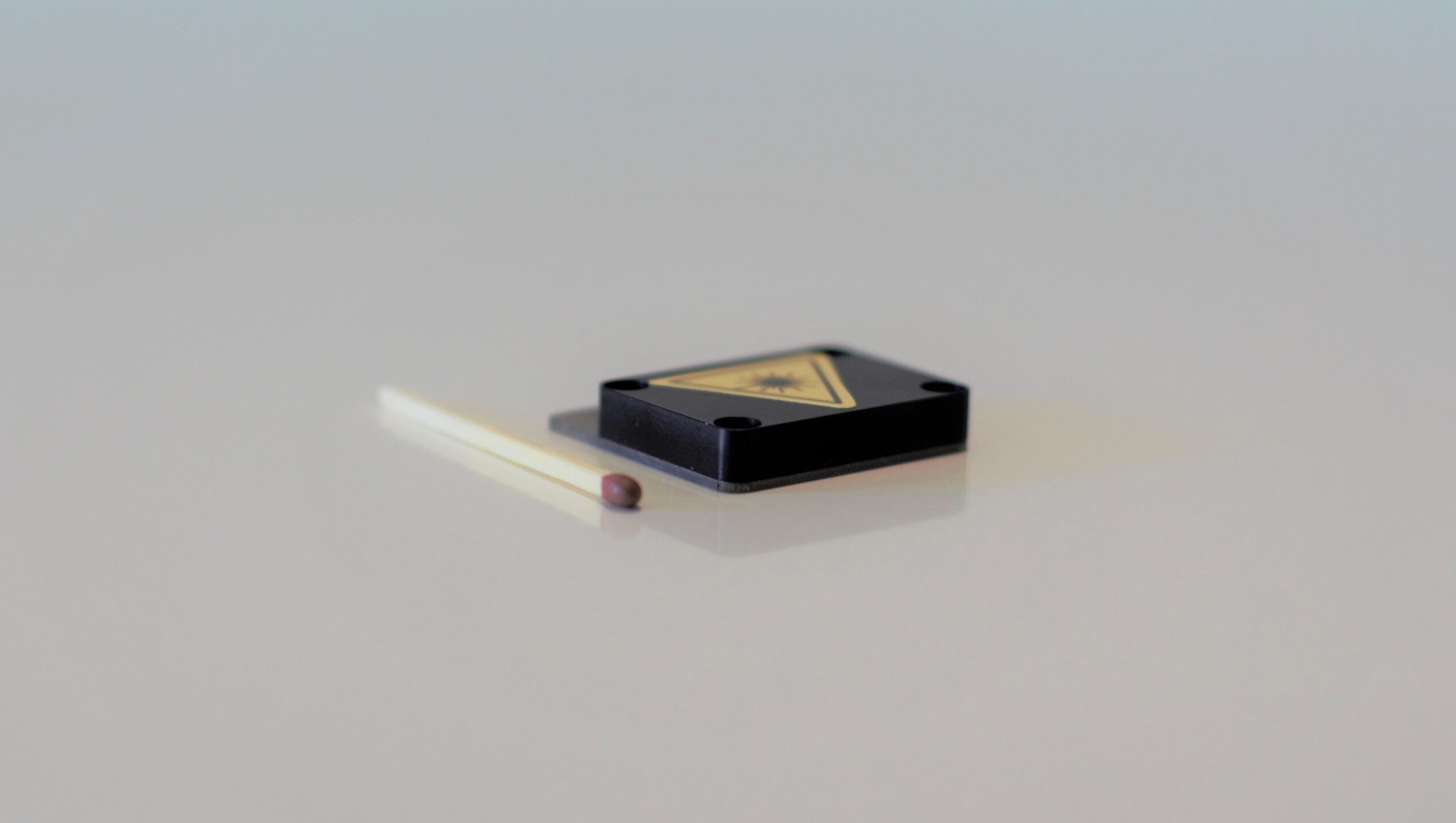

VS15 - 1535 nm
OEM laser

Pulse duration: 1 – 10 ns
Pulse repetition rate: 1 – 50 kHz
Pulse energy: up to 12 µJ

Looking for a custom solution?

Having in-house control of the key components in the laser, we also do tailored products and development projects.

If you did not find a suitable product in our current coverage, contact us for more information on available pulse durations, repetition rates, pulse energy as well as operation wavelengths.
