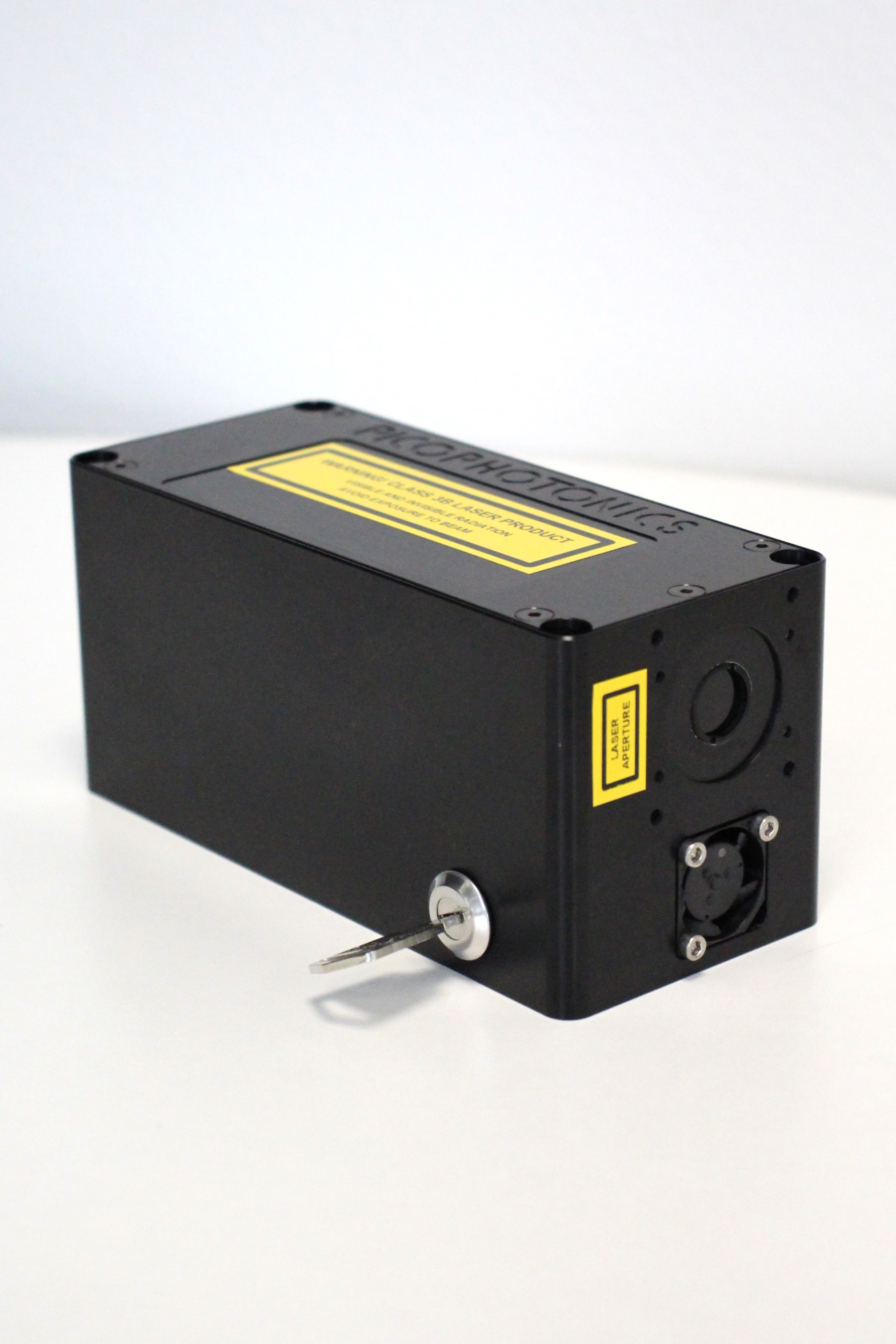

SP10 - Compact 1064 nm microchip source with integrated driver electronics.
Short-pulsed, 1064 nm, tunable high repetition rate laser source for spectroscopy and analysis applications.
100 ps, 100 kHz, 0.3 µJ with integrated electronics and fiber coupling.
Optical parameters can be tailored to application requirements.
| Wavelength | 1064.3 nm (+/-0.3 nm) |
|---|---|
| Spectral width | <0.20 nm |
| Pulse duration (factory fixed) | 50 ps – 300 ps |
| Repetition rate (tunable) | 10 kHz – 200 kHz |
| M² | <1.5 |
| Power stability (%-SD) | < 2 % |
| Polarization | Linear |
| Average power | up to 50 mW |
| Pulse energy | 0.1 µJ – 0.3 µJ |
| Operation temperature | 15 °C to 35 °C |
| Dimensions | 135 mm x 60 mm x 65 mm |
Integrated driver system
Optical shutter

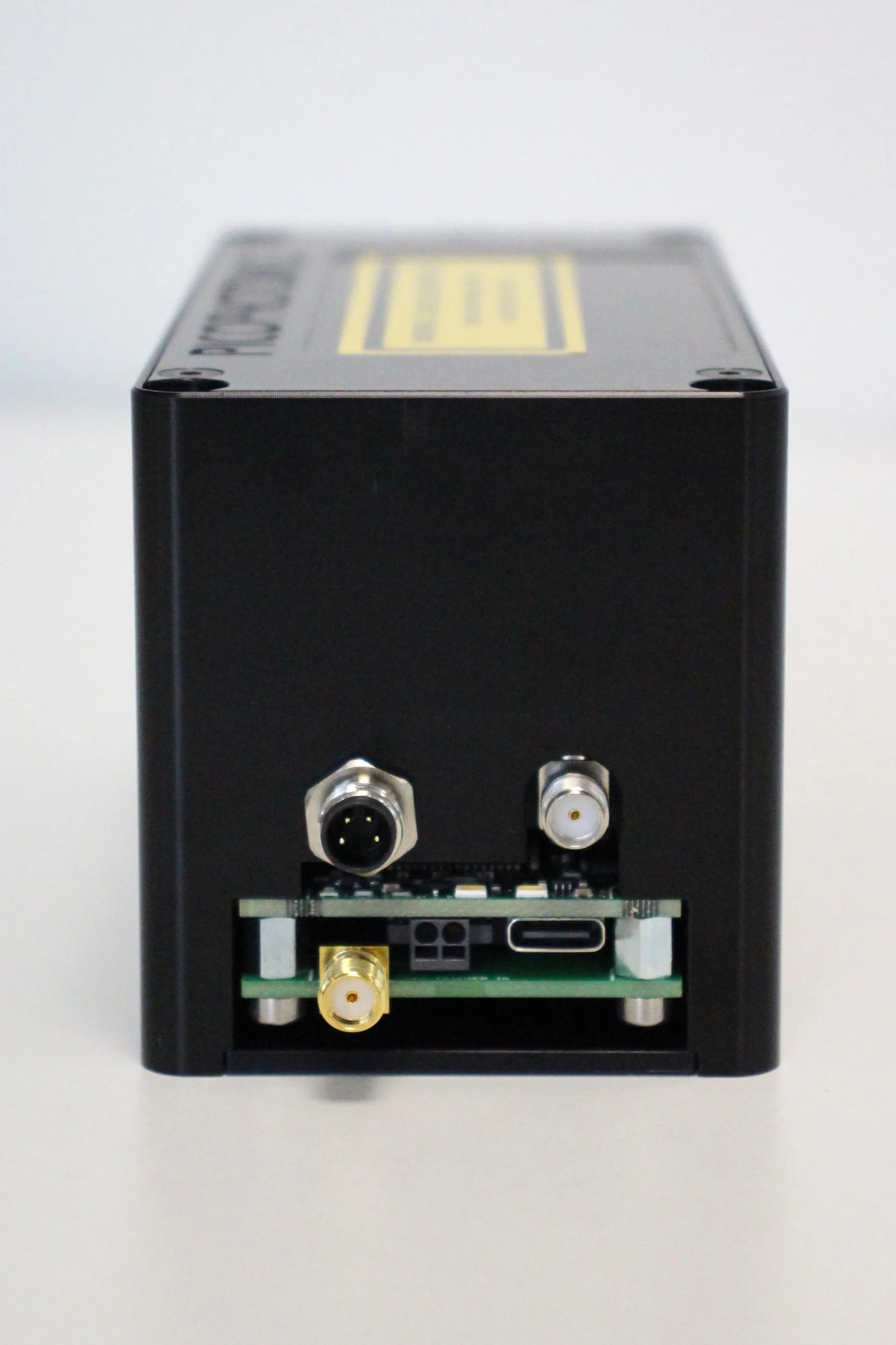

Electrical trigger out signal and TTL trigger in signal
No active cooling required
OEM customization available
