A compact 100 ps, 532 nm microchip laser engineered for high repetition rate and low-power OEM applications.
The integrated control electronics and optional fiber-coupled output simplify system integration for analytical instruments and portable sensing devices.
Optical specifications can be tailored to meet customer-specific requirements.
SP05 provides 100 picosecond pulse generation in a highly compact format. Standard pulse durations of 50 ps, 100 ps, and 200 ps are available, supporting precise timing resolution in fluorescence lifetime analysis, gated spectroscopy and time-of-flight sensing.
Adjustable from single-shot up to 200 kHz, laser supports both continuous and externally synchronized pulsing. This flexibility is essential for handheld spectrometers and multi-parameter diagnostic platforms.

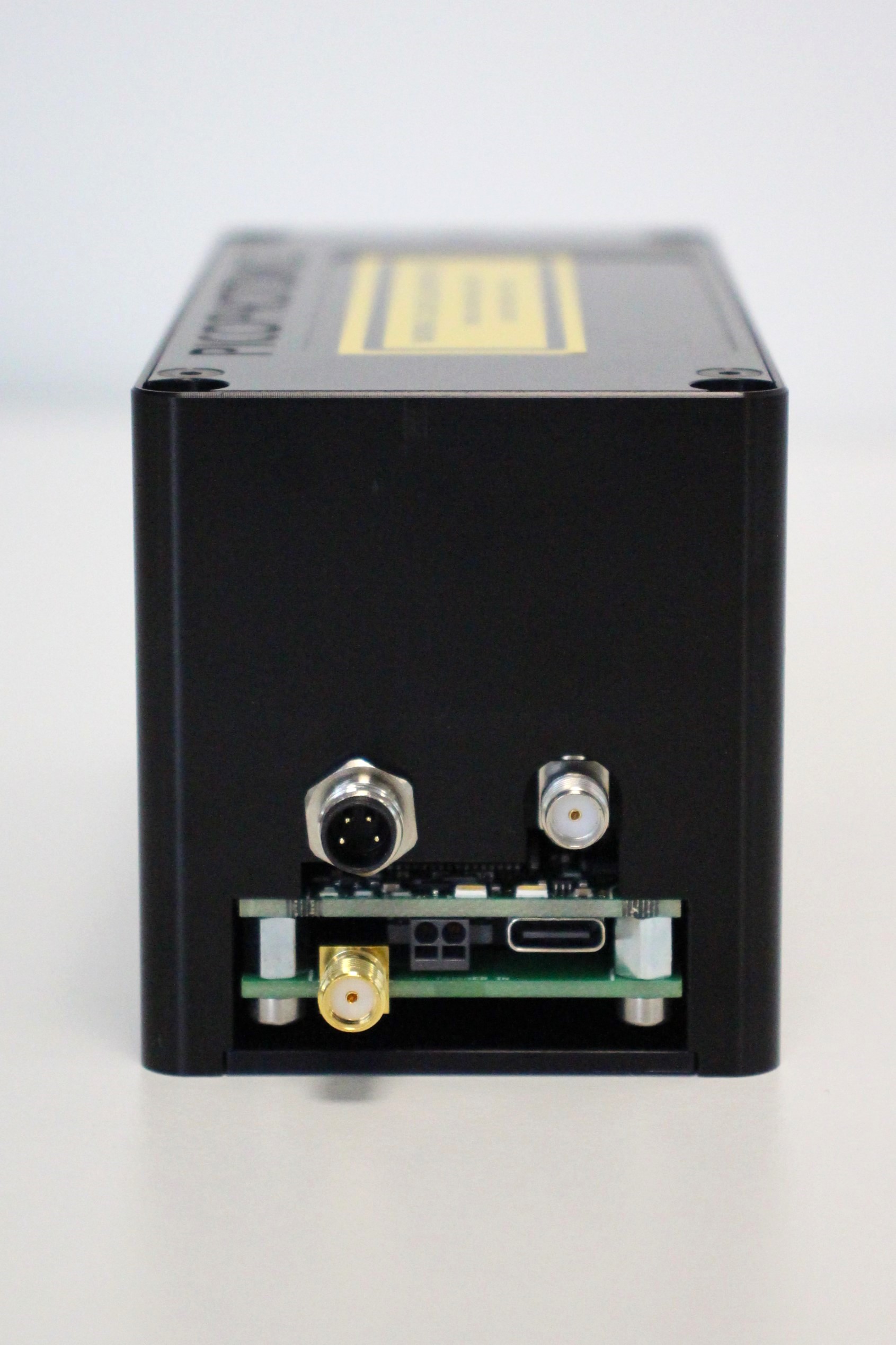

An onboard control board ensures a low-jitter electrical trigger-out signal aligned to the optical pulse. Optional TTL trigger-in capability provides additional freedom in system integration.

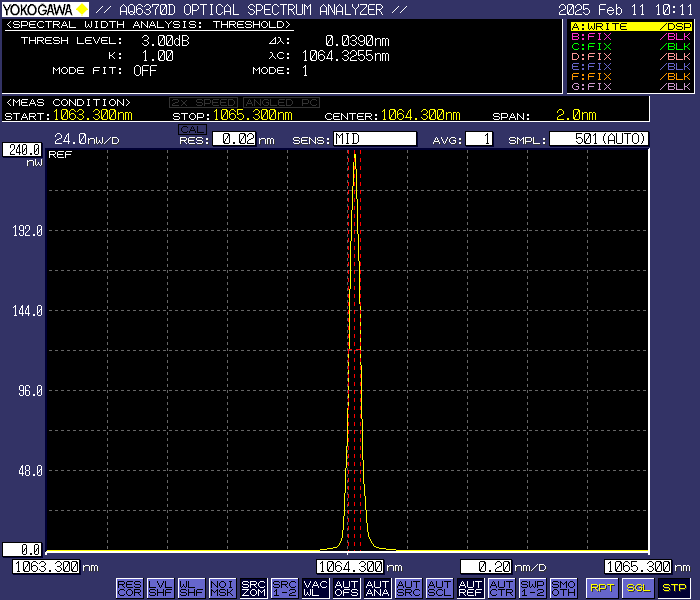

Single-frequency performance with < 0.06 nm linewidth ensures excellent spectral purity and stability. This enables excitation in time-gated Raman and absorption-based analysis systems.
With only 135 × 60 × 60 mm including integrated power and control electronics, SP05 is ideally suited for OEM integration in portable analytical devices and compact optical benches.

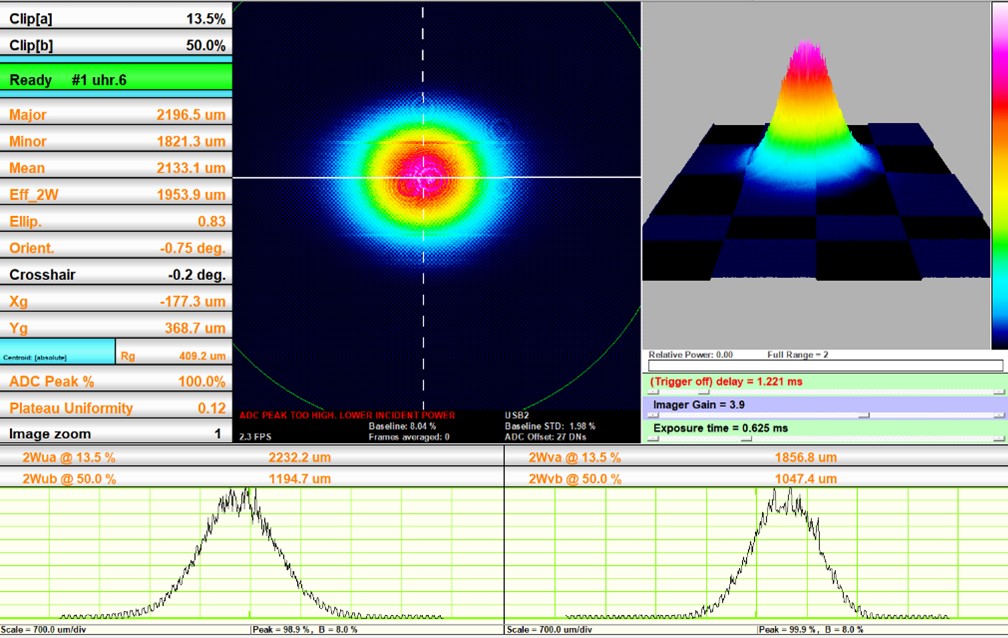

M² < 1.3 beam quality enables efficient free-space or fiber-coupled delivery to the point of measurement, supporting tight focusing and high signal-to-noise performance in sensing applications.
