CP32 - 532 nm MOPA laser
High repetition rate 532 nm picosecond laser with external trigger.
Integrated electronics with adjustable power levels and pulse repetition rate.
Laser parameters tailorable to customer needs.
| Wavelength | 532.2 nm (+/-0.3 nm) |
|---|---|
| Spectral width | <0.06 nm |
| Spectral shape | Gaussian |
| Pulse duration (factory fixed) | 50–300 ps |
| Pulse shape | Gaussian |
| Repetition rate (tunable) | single pulse to 200 kHz |
| Polarization | Linear |
| Average power (tunable) | up to 200 mW |
|---|---|
| Pulse energy (tunable) | up to 5 µJ |
| Peak power (tunable) | up to 75 kW |
| Power stability* (Std dev., 1h) | < 1 % |
| Power stability* (Std dev., 12h) | < 1 % |

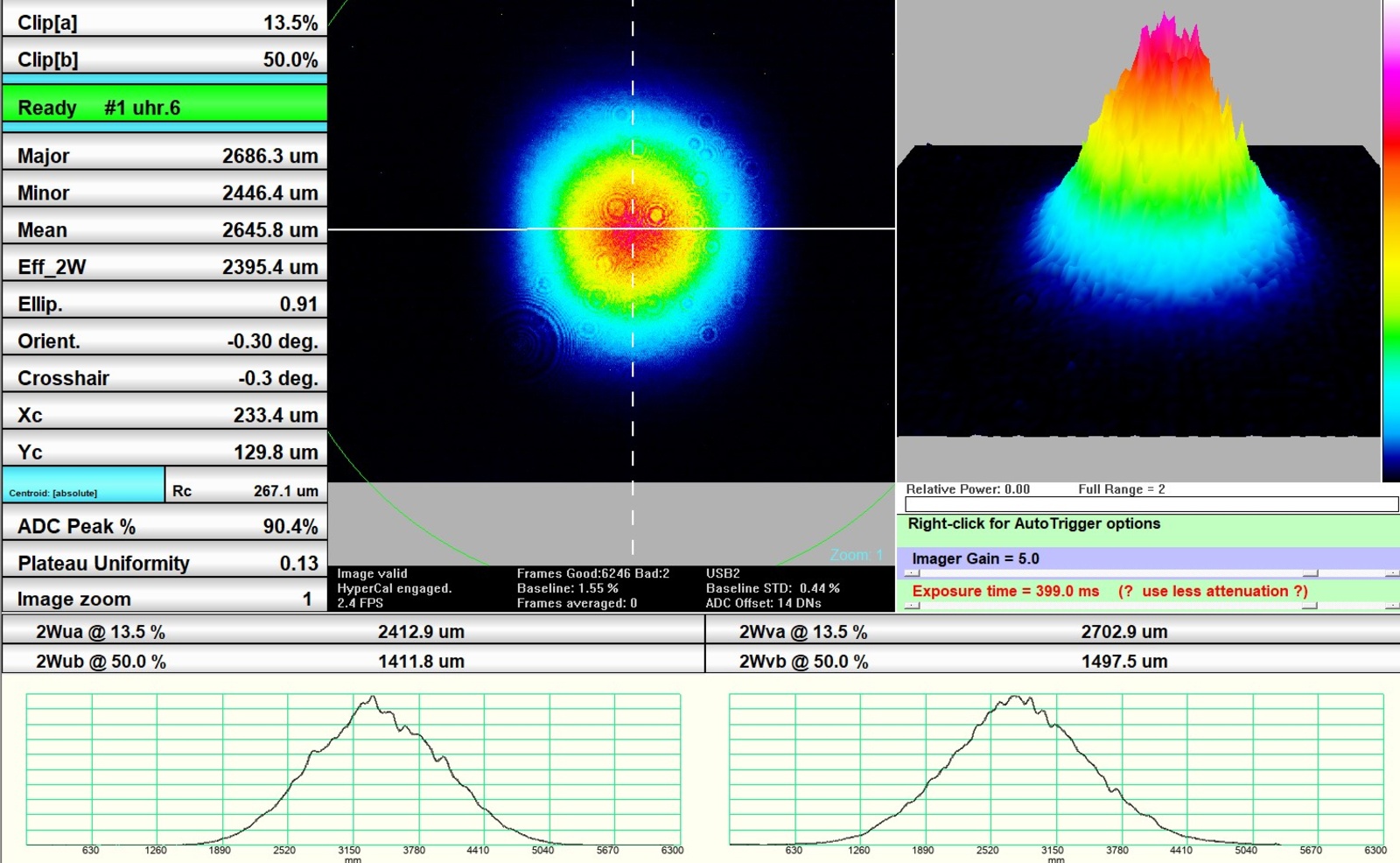

| Beam Profile | Round, slightly elliptical |
| M² | <1.3 |
| Operation temperature** | 15 °C to 40 °C |
| Dimensions | 95 mm x 140 mm x 50 mm |
| Power Supply | XP Power, VES120PS12 |
| Warranty | 1 year |
| Additional Features | |
|---|---|
| Integrated fiber coupling (SM or MM fiber) and shutter system | |
| Optical or electrical trigger out signal available | |
| Integrated air cooling system with fans |
*Stability values with integrated cooling system.
**Temperature in non-condensing conditions.
For more information and datasheet, please contact us.
