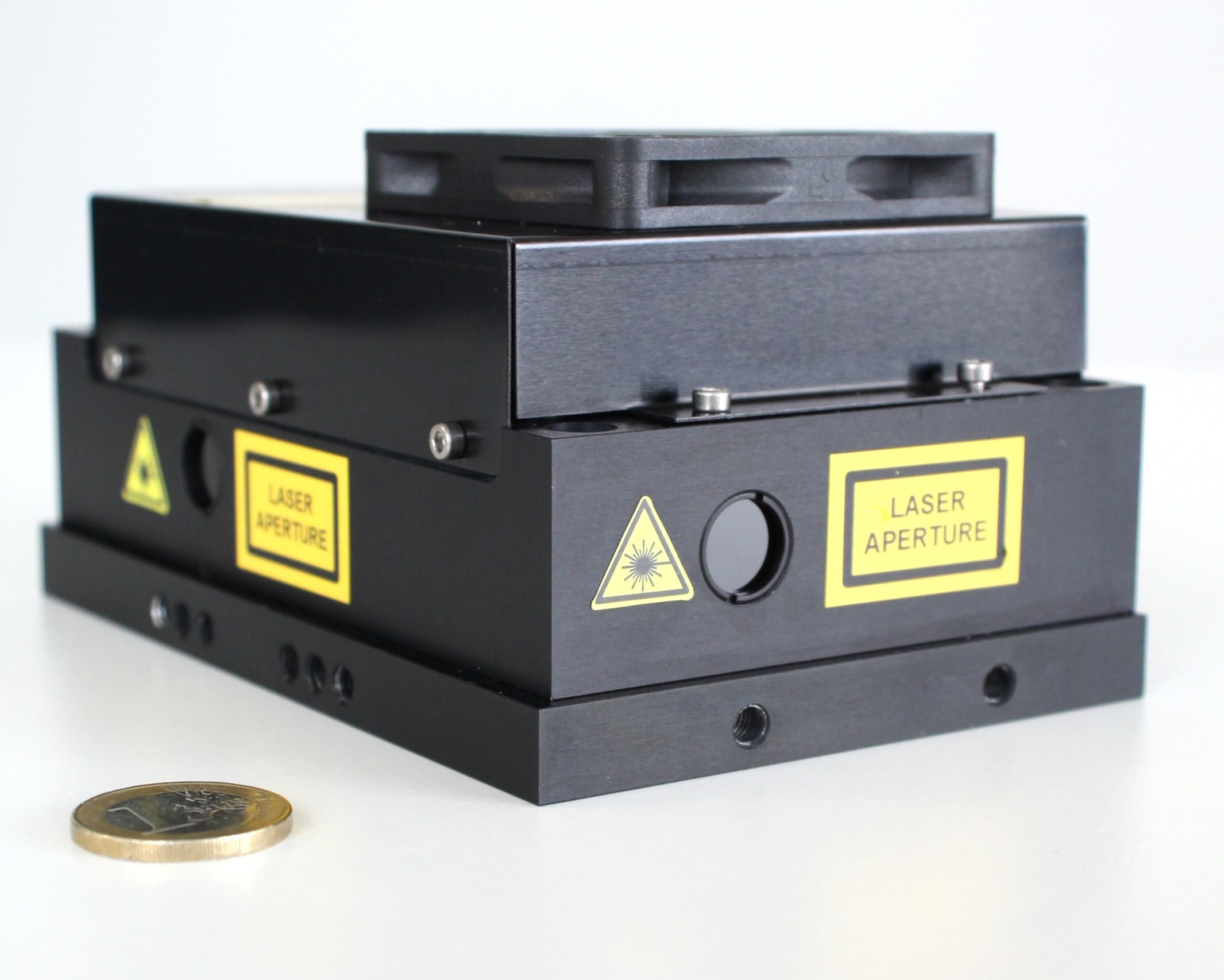

CP64 - 1064 nm picosecond MOPA laser
High precision picosecond laser source for scientific and industrial applications.
Computer controllable, high repetition rate laser with 100 ps pulse duration.
Integrated electronics with adjustable power levels and dynamically tunable pulse repetition rate.
Laser parameters tailorable to customer needs.

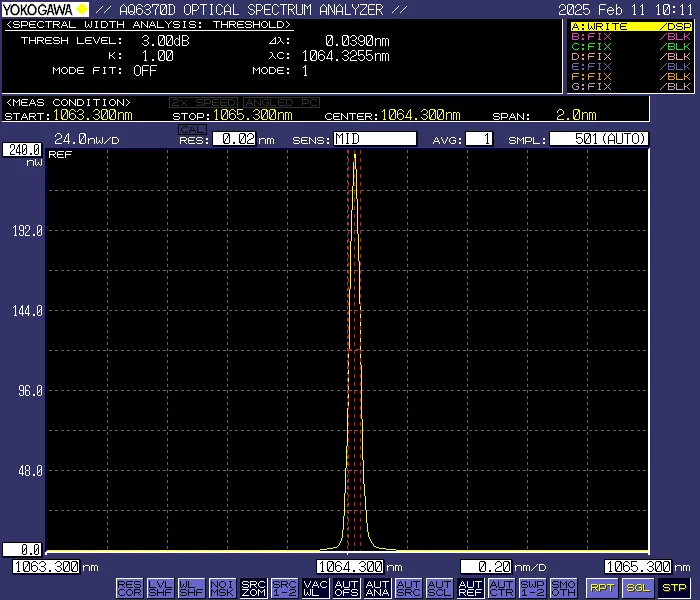

| Wavelength | 1064.3 nm (+/-0.3 nm) |
|---|---|
| Spectral width | <0.10 nm |
| Spectral shape | Gaussian |
| Pulse duration (factory fixed) | 60–500 ps |
| Pulse shape | Gaussian |
| Repetition rate (tunable) | single pulse to 200 kHz |
| Polarization | Linear |
| Average power (tunable) | up to 500 mW |
|---|---|
| Pulse energy (tunable) | up to 10 µJ |
| Peak power (tunable) | up to 100 kW |
| Power stability* (Std dev., 1h) |
< 1 % |
| Power stability* (Std dev., 12h) |
< 1 % |

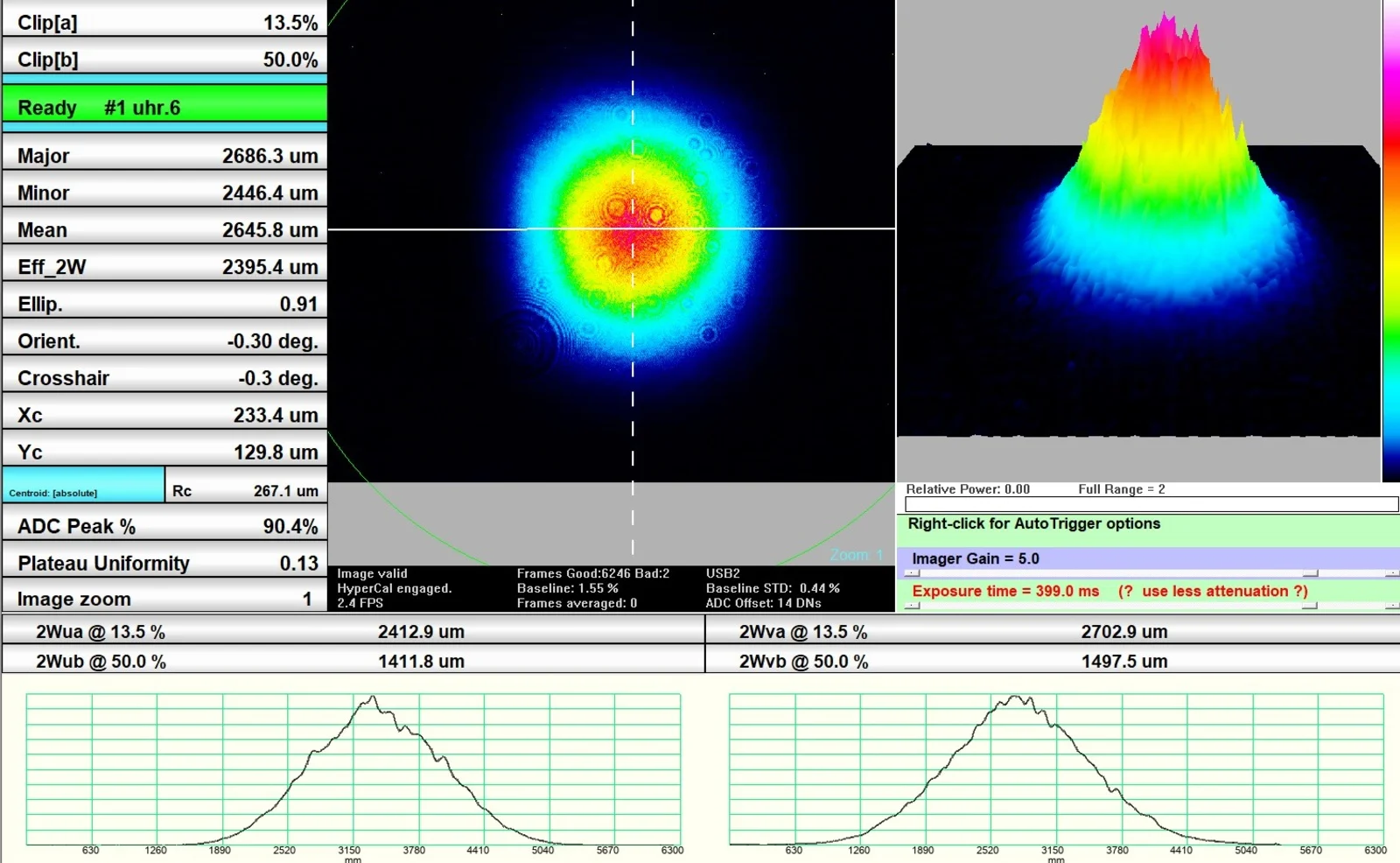

| Beam Profile | Round, slightly elliptical |
| M² | <1.3 |
| Operation temperature** | 15 °C to 40 °C |
| Dimensions | 95 mm x 140 mm x 50 mm |
| Power Supply | XP Power, VES120PS12 |
| Warranty | 1 year |
| Additional Features | |
|---|---|
| Integrated fiber coupling (SM or MM fiber) and shutter system | |
| Optical or electrical trigger out signal available | |
| Integrated air cooling system with fans |
*Stability values with integrated cooling system.
**Temperature in non-condensing conditions.
For more information and datasheet, please contact us.
